The main components of the iPhone 16 Pro and iPhone 16 Pro Max are explained with photos.
There were rumors that some of the camera image sensors in the iPhone 16 series would be made by Samsung, but if this post is correct, all of the camera image sensors in the iPhone 16 Pro and iPhone 16 Pro Max will be made by Sony.
Compare each board
TECH INFO (@TECHINFOSOCIALS) explains the main components of the iPhone 16 Pro and iPhone 16 Pro Max.
You can see how the main components have been improved compared to the iPhone 15 Pro Max.

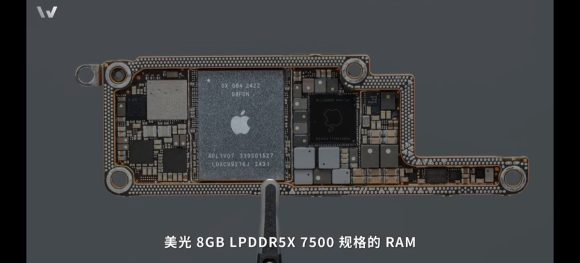

Logic Board
The iPhone 16 Pro and iPhone 16 Pro Max are equipped with an A18 Pro system-on-chip (SoC), 8GB of Micron LPDDR5X RAM, and Kioxia NAND chips for storage.

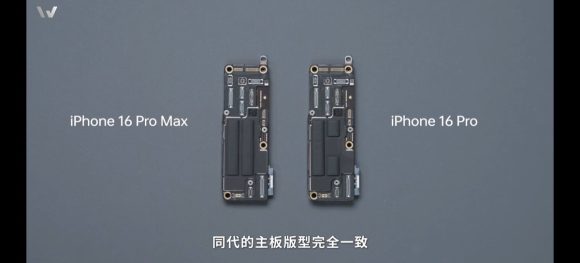

The logic board area of the iPhone 16 Pro and iPhone 16 Pro Max is the same.

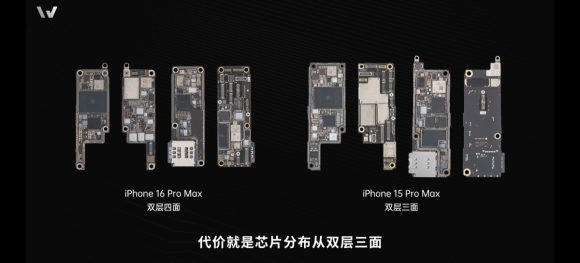

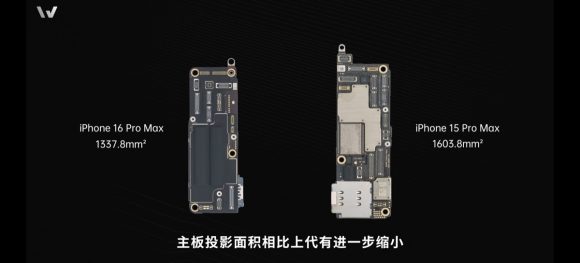

Communication module board

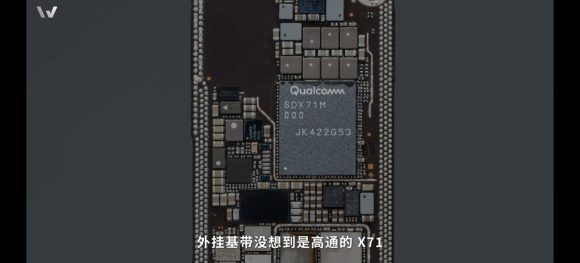

As previously reported, the 5G modem is the Qualcomm Snapdragon X71M.
The communication module board of the iPhone 16 Pro Max is smaller than that of the iPhone 15 Pro Max.

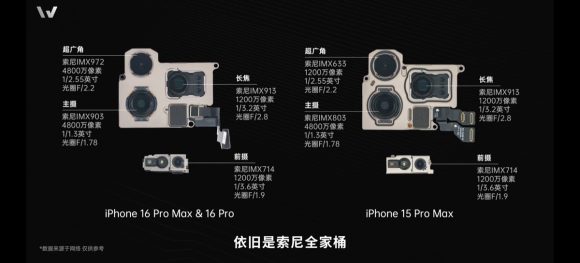

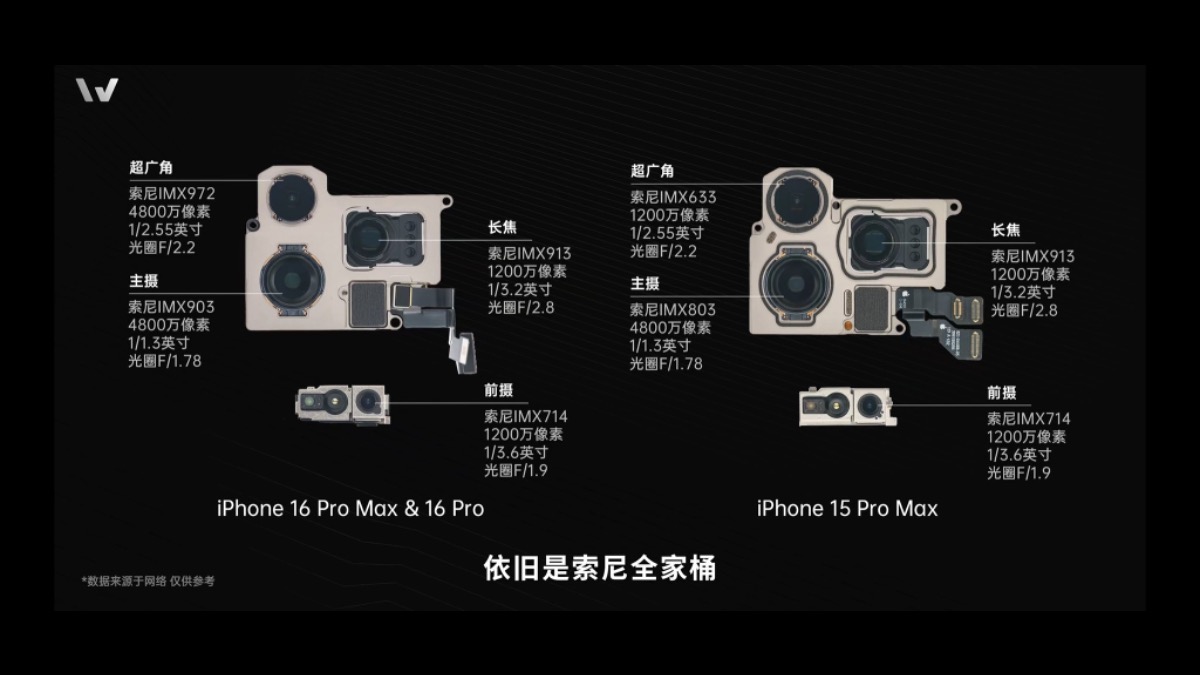

Camera image sensors
The camera image sensors for the iPhone 16 Pro, iPhone 16 Pro Max, and iPhone 15 Pro Max are as follows:
| iPhone16 Pro | iPhone16 Pro Max | |
| Wide-angle camera | 48MP 1/1.3 inch F1.78 Sony IMX903 |
48MP 1/1.3 inch F1.78 Sony IMX803 |
| Ultra-wide camera | 48MP 1/2.55 inch F2.2 Sony IMX972 |
12MP 1/2.55 inch F2.2 Sony IMX633 |
| Telephoto camera | 12MP 1/3.2 inch F2.8 Sony IMX913 |
12MP 1/3.2 inch F2.8 Sony IMX913 |
| Front camera | 12MP 1/3.6 inch F1.9 Sony IMX714 |
12MP 1/3.6 inch F1.9 Sony IMX714 |
It is rumored that the telephoto camera will have 48 million pixels on the iPhone 17 Pro series, and the front camera will have 24 million pixels on all models of the iPhone 17 series.
Battery specifications and weight
The iPhone 16 Pro’s stainless steel battery weighs 51.2 grams, which is heavier than the iPhone 15 Pro’s battery (44.1 grams).

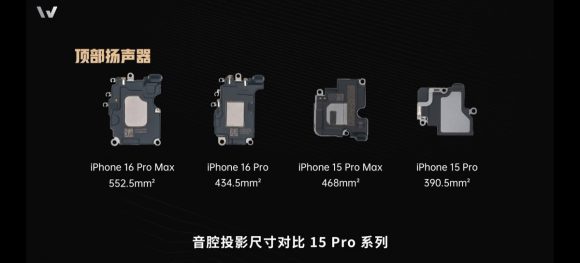

Top speaker
The area of the upper speaker board is larger on both the iPhone 16 Pro and iPhone 16 Pro Max than on the previous models.
In addition, the Pro Max appears to have a larger board area than the Pro in both cases.
Source:TECH INFO (@TECHINFOSOCIALS)/X
Source: iPhone Mania
