At the 2025 new product launch conference, Apple officially launched the new iPhone 17 series without emphasizing the USB-C technology that supports 40W fast charging power. However, according to official data, iPhone 17, iPhone 17 Pro and iPhone 17 Pro Max all support 40W USB-C fast charging. When using a compatible USB-C charger, it can charge to 50% of the battery as fast as 20 minutes. Compared with the iPhone 16 series’ 30 minutes to charge half the power, the charging efficiency is greatly improved.
Apple iPhone 17 40W fast charging 20 minutes 50% new PD3.2 AVS protocol technology
In order to meet the iPhone 17 series 40W fast charging, Apple also simultaneously launched the new 40W dynamic power charger (Dynamic Power Adapter), with a peak power of up to 60W and supports the latest USB PD3.2 AVS protocol. Through in-depth cooperation with the iPhone 17’s built-in Charge Pump function, it can shorten charging time and reduce heat generation, bringing a more stable and efficient user experience.

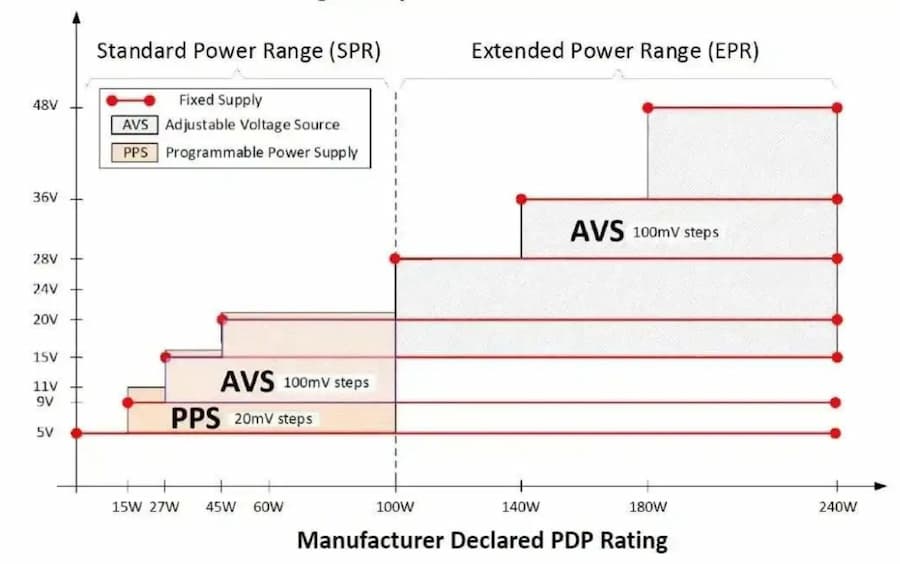

The main special feature of Apple’s iPhone 17 40W charger is the introduction of the PD3.2 AVS protocol. Compared with the previous generation PD3.1, the latest PD3.2 supports adjustable voltage (AVS) in the standard power range (27W–100W), allowing the device to fine-tune voltage between 9V–20V in a minimum unit of 100mV.
Simply put, Apple imported a 40W dynamic charger for the first time on the iPhone 17 series and paired with the latest PD3.2 AVS protocol. This change is not only the increase in the charging power of the iPhone 17 series, but also represents that Apple has made a different choice in the fast charging protocol, which can improve efficiency while reducing power consumption.
It is worth noting that it is not necessary to buy Apple’s 40W dynamic charger to experience the fast charging of the iPhone 17 series. As long as most high-wattage chargers on the market that meet PD specifications are expected to reach 40W or 60W chargers to achieve the same effect.
On the other hand, the iPhone Air, which focuses on ultra-thin design, has a charging speed comparable to the previous generation iPhone 16 series, and has not been upgraded to 40W fast charging simultaneously.

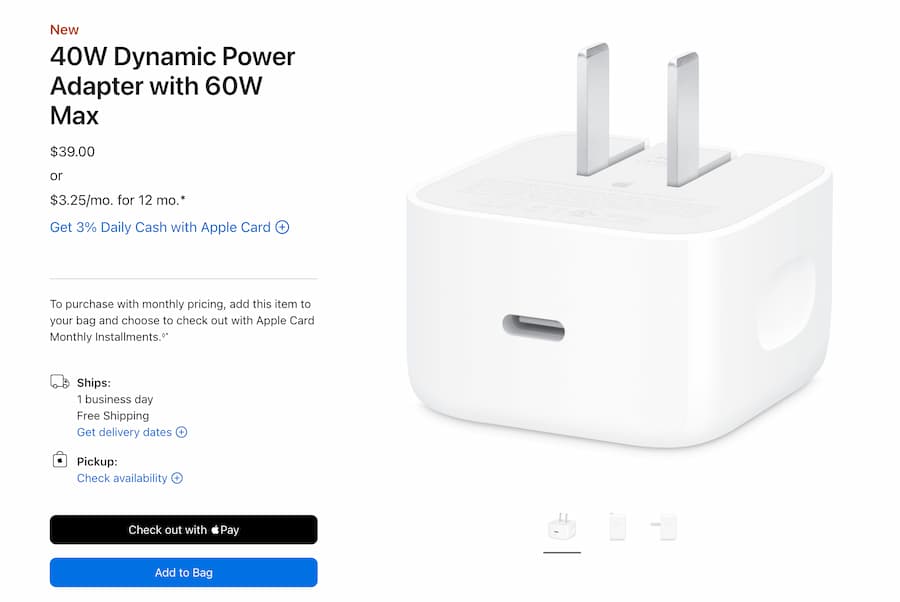

Specifications of Apple’s original 40W dynamic charger
- Model: A3365
- Input: 100-240V~, 50-60Hz, 1.5A (USB PD)
- Output:
- (AVS) 15.0-20.0Vdc, 2.0A [3.0A 輸出]
- (AVS) 9.0-15.0Vdc, 2.67A [3.0A DPS]
- 9.0Vdc, 3.0A
- 5.0Vdc, 3.0A
- Maximum total output power: 60W
- Manufacturer: Sailkang Technology (Shenzhen) Co., Ltd.
- Price: USD 39 (about NT$1,290)
Why does Apple use PD 3.2 but abandon PPS charging technology?
Most Android flagships on the market use PPS (Programmable Power Supply, which is a PD3.0 extension), and can adjust the voltage in careful steps between 3.3V and 21V to achieve high flexibility.
On the contrary, Apple adopted another upgrade path for iPhone, directly using the SPR AVS added in PD3.2, with a range of 9V~15V/20V, and there is no PPS constant current mode. To do this? There may be two reasons:
- Compatibility considerations: The PPS companies have too many differences, resulting in poor interoperability between different brands.
- Cost and stability: The AVS has a simpler structure, clear protocol, and more stable cross-device pairing.
iPhone 17 supports 40W fast charging better than Android
Even if the iPhone 17 can support 40W fast charging, and official data shows that it can allow iPhone 17, iPhone 17 Pro, and iPhone 17 Pro Max to charge to 50% of the power in 20 minutes, and the charging efficiency can also compete with the Android camp flagship:
- iPhone 17 / 17 Pro Series: 50% power in 20 minutes
- Google Pixel 10: 20 minutes full of 40% power
- Google Pixel 10 XL: 45% power in 20 minutes
- Samsung Galaxy S25 Ultra: 50% power in 21 minutes
This also means that the iPhone 17 series has reached the mid-to-earth level, and can compete with Samsung to better than the Google Pixel 10 model, and the iPhone 17 Pro Max can also be on par with Android flagships in terms of battery capacity and battery life.
Apple’s fast charging data is relatively honest than Chinese brand mobile phones
For Chinese Android brand mobile phones, they will deliberately advocate 100W fast charging, and most of them rely on their own private protocols. Compared with the standard chargers that support PPS and PD charging, the actual power will drop significantly. Some netizens also found that even Android uses 100W high-power fast charging for a very short time, and thermal control and battery safety are also major issues.
Compared with Apple’s iPhone 17 series fast charging to 40W, it is relatively equipped with the use of PD3.2 AVS standardization technology to continue to upgrade, rather than relying on purely stack fast charging numbers, which can also allow iPhones to still have great advantages in safety, stability, and cross-device compatibility.
The outside world also predicts that with Apple’s huge charger ecosystem, this new PD 3.2 AVS protocol is likely to be rapidly popularized due to the promotion of iPhone 17.
